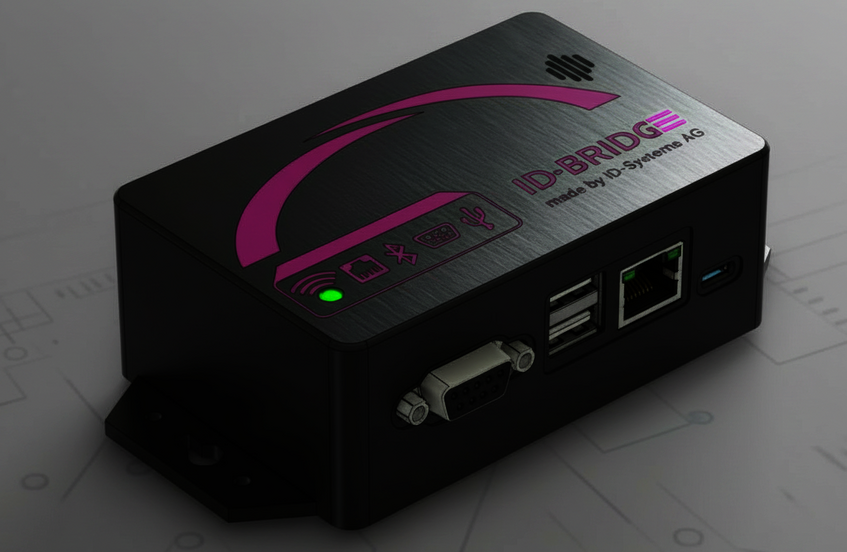

ID-Bridge – The universal protocol converter for industry and IoT
Maximum connectivity, full flexibility, future-proof
Universal Interfaces – One Device, All Connections
ID-Bridge connects Ethernet, USB, USB HID, RS232, WLAN, and Bluetooth, acting as a universal protocol converter for industrial, IoT, and retrofit applications. With just one device, practically all equipment can communicate seamlessly.
Protocol Flexibility for Any Application
Inputs from one protocol can be flexibly output in another. Ideal for Industry 4.0, IoT gateways, and the integration of legacy systems.
Customizable Data Strings
Our new feature allows for flexible customization of data strings for ERP, WMS, or IoT systems:
-
Automatically parse UDI codes according to GS1 Application Identifiers
-
Customize USB HID transmissions with time delays, TABs, spaces, Enter, or other control characters
-
Perfect data formatting without the need for manual post-processing, ready for integration into ERP & WMS
Industrial-Grade & Robust
-
Flexible power supply: 7–24 VDC, via barrel connector or screw terminals
-
Compact, rugged design: DIN-rail compatible
-
Acoustic feedback: Can be optionally disabled
-
Retrofit-ready: Fast integration into existing systems
Application Examples
-
Connect a fixed scanner (Ethernet) to a PC via USB-HID (the ID-Bridge features an integrated beeper)
-
Connect a Bluetooth scanner directly to a PC (the ID-Bridge supports Bluetooth)
-
Transmit data from a USB scanner via WLAN to a second ID-Bridge, and from there via Ethernet to a server or PC
ID-Bridge IoT Connectivity Hub
Visualizing universal interoperability and real-time data transformation.
Input Sources
ID-Bridge
Transformation Capabilities
Standard Modifications
- Find & Replace
- Add Prefix / Suffix
Advanced Rules
- LUA Scripting Engine
Output Destinations
The ID-Bridge Advantage
This many-to-many connectivity simplifies your architecture and accelerates development.
Download datasheet
